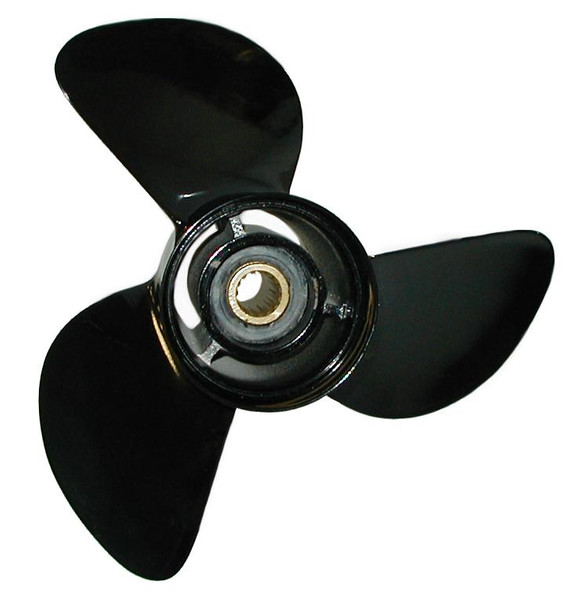

12 5/8 X 21 Aluminum Three Blade Right Hand Propeller by Michigan Wheel (101035)

(No reviews yet) Write a Review
$220.49
SKU:
101035
UPC:
14984006804
Weight:
7.40 LBS
MATERIAL:
Aluminum
Unit of Measure:
EA
PITCH:
21
Manufacturer Part Number (MPN):
101035

12 5/8 X 21 Aluminum Three Blade Right Hand Propeller by Michigan Wheel (101035)

$220.49

Michigan Wheel Marine 12.625R21.000 AL 3BL MI MATCH is a type of propeller that controls the boat as a whole. Regardless of the style or size of the vessel, this boat propeller does for propulsion. The concept of 'pushing' or 'propelling' is the work of this propeller. It became the most common way of steering a boat in the seas. This propeller measures 12.625 inches diameter with a 21-inch pitch. Its weight contributes to the rotational speed, weighing 7 pounds. The materials it manufactured are composed of aluminum. It has three blades in total. The blades have undergone mounting on the hub, the same way as thin aerofoil sections are mounted on thin aerofoil sections to create the hydrodynamic lift needed to generate thrust. Its pitch measures how much this propeller will "drive" or "push ahead."

Key Features:

  • It has the best rake inclination to avoid too much vibration in the boat.
  • Anti-corrosion coatings provide additional protection for metal surfaces by acting as a barrier to prevent chemical compounds or corrosive chemicals from coming into contact.
  • Aluminum is known for its lightweight and flexibility.

Product Details:

  • SKU: 101035
  • UPC: 014984006804
  • Weight: 7.00 LBS
  • PITCH: 21
  • MATERIAL: Aluminum

15'-18' All Load

Engine Application

Yamaha® 50-130 Horsepower 41/4" Gearcase


T50 hp…1996 & newer;
T60 hp…2003 & newer;
60 hp (Includes C60/E60/P60)…1992-2005;
F70 (4-Stroke)…2010 & newer;
70 hp…1984 & newer;
F75 (4-Stroke)…2003 & newer;
5 hp (Includes C75/E75/P75)…1994-99;
80 hp…1997;
F80 (4-Stroke)…1999-2002;
85 hp…1991-97;
F90 (4-Stroke)…1999 & newer;
90 hp (Includes C90)…1984 & newer, F100 (4-Stoke)…1999-2002;
F115 hp (4-Stoke)…2000 & newer;
115 hp (Includes C115/P115)…1984 & newer;
130 hp…1984-2003

Attaching Hardware:H68/H69

Attaching Hardware

H68/H69

H68


Flat washer:
Quicksilver: 859907
Nut (castle):
Sierra: 18-3732
Quicksilver: NLA
Spacer washer (aft, splined):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3781
Michigan Wheel: 990766
Thrust washer (forward):
Michigan Wheel: 990769

H69


Cotter pin (10/pack):
Sierra: 18-3735
Flat washer:
Sierra: NLA
Quicksilver: 887972
Nut:
Sierra: 18-3726
Spacer washer (aft):
Sierra: 18-4274
Spacer, washer, nut & pin kit:
Sierra: 18-3782
Thrust washer (forward):
Sierra: 18-73918
Michigan Wheel: 990770

This product replaces:

    14984006804
