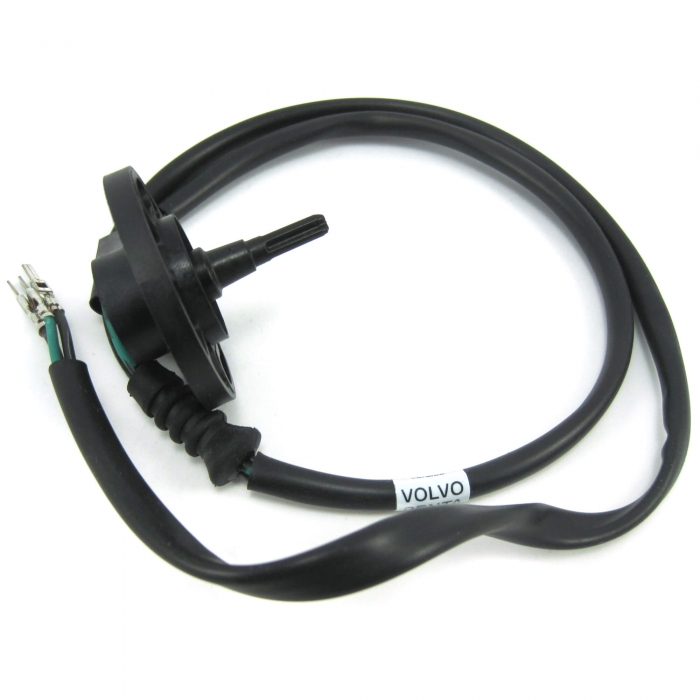

The sensor and bracket are both included in the sensor kit for Volvo Penta Outdrives. The sensors withstand the weather and resist salt water corrosion. A known pressure source (a standard) links to the transmitter's input port to execute a sensor trim; compare the standard pressure to the pressure value recorded by the microprocessor.

A Trim Sensor Kit is a two-point adjustment with complete sensor trim. The top point adjustment is crucial before the decreasing factor adjustment, which keeps the pitch between 0 and 100%. There are merely a lot of points available for the two-point trim inside the calibration range, with the choices being Auto sensor trim and Manual sensor trim. On the other hand, manual Sensor Trim necessitates the technician to compute and enter the trim value. Utilizes only the best materials to create the product. Under harsh circumstances, it offers attributes of durability and dependability.

Key Features:

• Enables the trimming adjustments to be reset to their initial calibrated levels

• Reset External Zero-adjustment Screw to its initial position for it to function

• Sensors are well-built to withstand the weather and resist corrosion from seawater.

• Drives from the SX, DP, AD, KAD, and TAMD series are compatible.

Product Specifications:

• Brand: Volvo Penta

• SKU: 21484383

• Weight: 0.30 LBS

• Dimensions: 4.5 x 5 x 3 inches

• Unit Of Measure: EA

• Fits: SX-A, DPS-A, DPS-B

• Diagram Reference Number: 22

• Alternate Products SKU: REC21484383, 21484383

• Manufacturer Part Number (MPN): 21484383

• Replaces Products: 3841840

Volvo Penta Exploded view / schematic Gimbal Ring and Pivot Housing

This product replaces:

3841840
