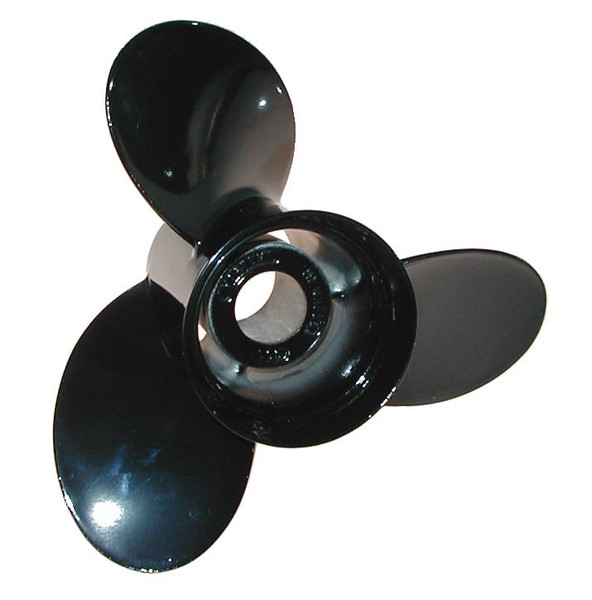

The 10 3/8 X 12 A3R PROP Vortex propellers are high-performance aluminum propellers that use the XHS Xchangeable Hub System. They have high-performance blade geometry, perfectly balanced blades, and a high gloss powder finish. Vortex propellers are a wonderful alternative for a replacement or spare propeller and are available for a wide variety of applications (9.9 HP through V6/V8 Outboard & Sterndrive).
APPLICATIONS:
JOHNSON, EVINRUDE:
1999 - 2005 40 HP 4-Stroke
1999 - 2005 50 HP 4-Stroke
Exhaust Thru Hub & 13 Tooth Spline
Use the XHS Hub Kit 115.
FORCE, CHRYSLER, UNITED STATES MARINE:
1995 - 1998 40 HP
1995 - 1998 50 HP
From 1991 until 1995, a 70-horsepower engine was available.
1996 - 1998 75 HP
Exhaust Thru Hub & 13 Tooth Spline
Use the XHS Hub Kit 114.
HONDA:
1991-1994 BF 35
1995 and newer BF 40
1991-1994 BF 45
1995 and newer BF 50 / 50A
BF 60 / 60A Thru Hub Exhaust & 13 Tooth Spline 2010 and Newer
Use the XHS Hub Kit 113.
MARINER, MERCURY:
1974 - 1976 40 HP (Model 402)
1974 - 1976 50 HP (Model 500)
1976, 60 HP (Mariner®).
1972 - 1976 65 HP (Model 650)
Exhaust Thru Hub & 13 Tooth Spline
Use the XHS Hub Kit 114.
MARINER, MERCURY:
1999 - 2005 25 HP 4-Stroke/Bigfoot
1994 - 2002 30 HP 2-Stroke
1999 - 2005 30 HP 4-Stroke
1994 and newer 30 HP (Sea Pro/Marathon)
From 1984 through 1989, 35 HP was available.
1977 and 40 HP 2-Stroke (Includes Model 402)
1997 and newer 40 HP 4-Stroke (Not Bigfoot)
1977 and newer 40 HP (Sea Pro/Marathon)
1986 - 1989 45 HP
All Years 48 HP (Mariner®)
1977 and 50 HP 2-Stroke (Includes Model 500)
1995 and newer 50 HP 4-Stroke (Not Bigfoot)
1995 and newer 55 HP (Mercury/Sea Pro/Marathon)
1978 and newer 60 HP 2-Stroke
2001 and newer 60 HP 4-Stroke (Not Bigfoot)
70 HP (Model 700 included) till 1983
Exhaust Thru Hub & 13 Tooth Spline
Use the XHS Hub Kit 114.
TOHATSU, NISSAN:
Exhaust Thru Hub & 13 Tooth Spline
Use the XHS Hub Kit 116.
Thru 1984, 35 HP (35B Only)
40 HP (includes TLDI, 40C, M40D, and MD40) 1984 and after
MFS40 2015 and Up
50 HP (excluding 50C, which includes TLDI, M50D, and MD50) 1992 and after
MSF50 2015 and Up
BFT60 2014 and Up
SUZUKI:
1987-1989 DT 35C
DT 40 (1983-1998)
1999-2010 DF 40 4-Stroke
2010 and newer DF 40A 4-Stroke
1983-1984 DT 50 & 50M
1999-2010 DF 50 4-Stroke
2010 and newer DF 50A 4-Stroke (Not 50AV)
DT 55 (1985-1997)
DT 60 (1983-1984)
2010 and newer DF 60A 4-Stroke (Not 60AV)
1985-1997 DT 65Thru Hub Exhaust & 13 Tooth Spline
Use the XHS Hub Kit 115.
Key features:
Improved powder coating
stronger bushings
Specifications:
Diameter: 10 3/8
Rotation: Right Hand
Engine Type: Honda, Mercury, Suzuki, Tohatsu, Yamaha (30-70HP)
Number of splines: Determined by hub kit
Hub kit: Required
Standard 3 & 4-Blade
