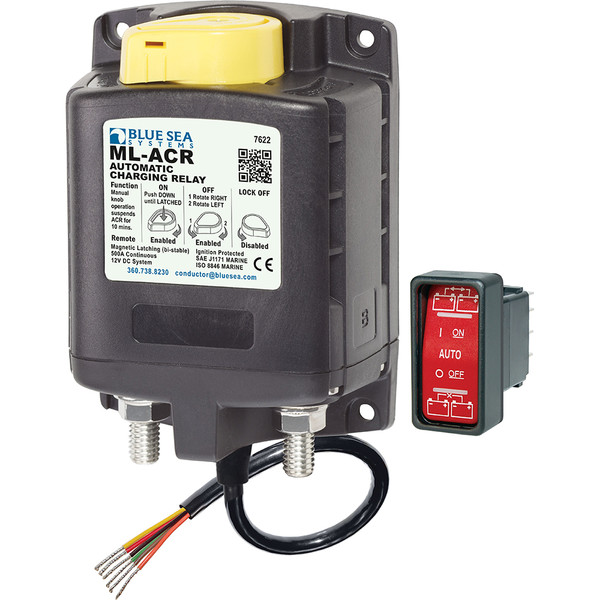

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay - P/N 7622

(No reviews yet) Write a Review
$332.84
SKU:
7622
UPC:
632085076221
Weight:
2.05 LBS
Unit of Measure:
EA
Manufacturer Part Number (MPN):
7622

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay - P/N 7622

$332.84
7622

Manual Control: Yes
Coil Voltage: 12v

Features:
  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads
