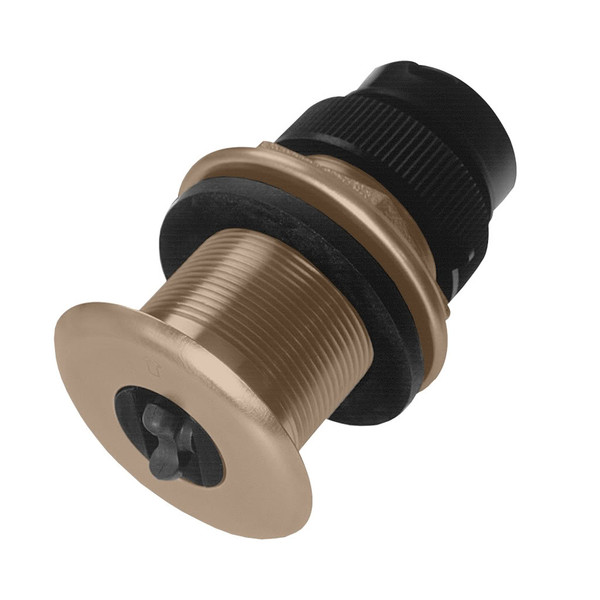

Furuno DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000 - P/N DST-810MSF

(No reviews yet) Write a Review
$425.00
SKU:
DST-810MSF
Weight:
3.25 LBS
Unit of Measure:
EA
Manufacturer Part Number (MPN):
DST-810MSF

Furuno DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000 - P/N DST-810MSF

$425.00

DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

Airmar B617V Housing Style Transducer

The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2") fitting. Only one hole through the hull simplifies the installation — an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-810MSF's reliable temperature sensor.

The DST-810MSF features a new Wireless connectivity to Airmar's CAST App, allowing you to calibrate the sensor, add depth offsets, and more.

Features:

  • Depth, speed, and temperature in one compact bronze housing
  • Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
  • Weight: 1.6 kg (3.5 lb)
  • Acoustic Window: Urethane Hull
  • Deadrise: Up to 22°
  • Data Update Rate: 1 per second
  • Minimum Sounding Depth: 0.5 m (1.6’)
  • Maximum Sounding Depth: 70 m (230’)
  • Pressure Rating: 3 m (10’)
  • Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
  • Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
  • Supply Current: 40 mA
  • Standard Cable Length: 6m
  • NMEA 2000® Load Equivalency Number (LEN): 4
