Ronstan Series 45 Core Block - Single/Swivel Haylard - P/N RF44188
click to zoom in

have questions?

+1 (800) 664-8116

Ask Our Experts

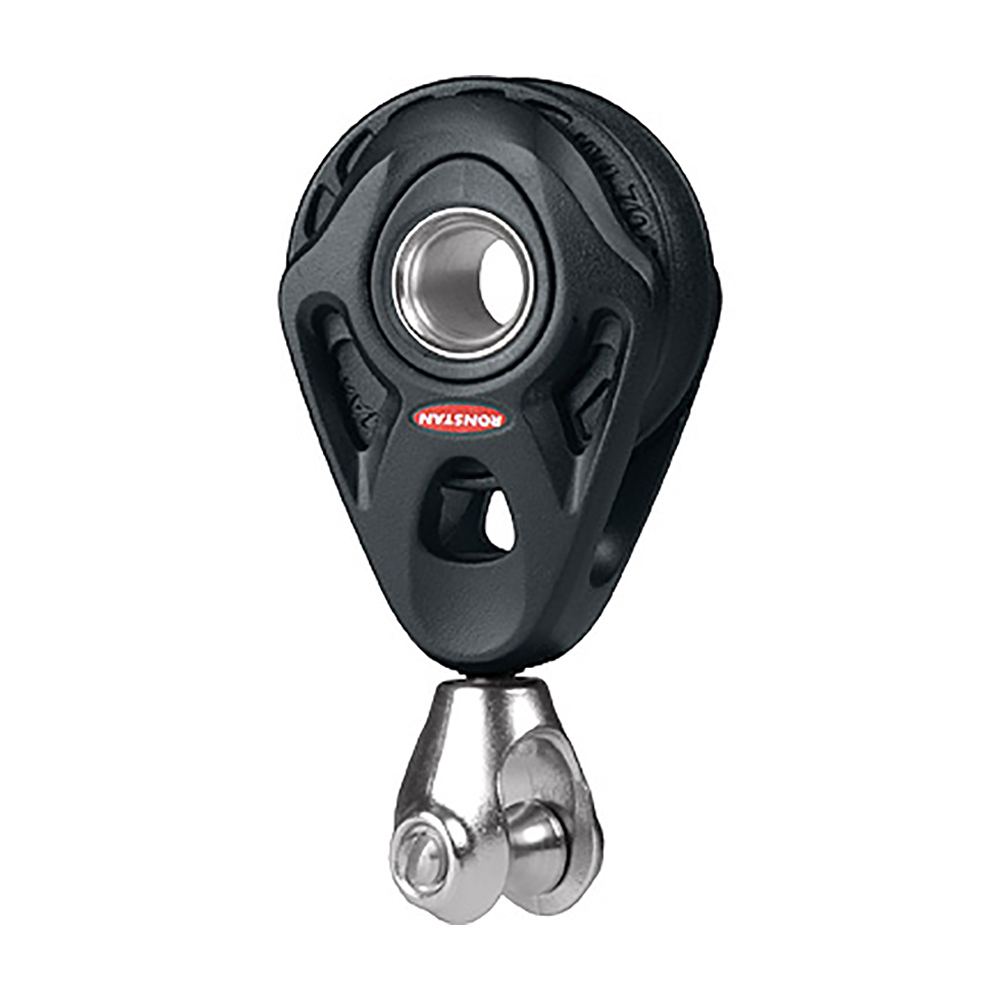

Ronstan Series 45 Core Block - Single/Swivel Haylard - P/N RF44188

(No reviews yet) Write a Review
$92.88
SKU:
RF44188
UPC:
9316800484669
Weight:
0.40 LBS
Unit of Measure:
EA
Manufacturer Part Number (MPN):
RF44188

  		•

Ronstan Series 45 Core Block - Single/Swivel Haylard - P/N RF44188

$92.88

video gallery

Description
Series 45 Core Block - Single/Swivel Haylard

Core Blocks™ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

Universal Bearing
  • Dynamic and high static load performance
  • The Ronstan Universal Bearing incorporates our proven 2-stage bearing system
  • Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction
  • Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance
  • Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks
Alloy Cheek Plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimization and the cut-away design minimizes weight and allows easy fresh water rinsing of salt and debris from the bearings.  Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimizing rope wear.

Features:
  • High dynamic and static load capacity
  • Efficient 2-stage bearing system
  • Ball bearings to counteract side thrust loads
  • Class leading performance and sleek, contemporary styling
  • Durable aluminium alloy cheek plates
  • Central hub hole can be used as a becket take-off or tie-up point
  • Incorporates a low profile swivel head fork
  • Features a removable screw pin for attachment to padeyes
  • Suitable for 12mm (1/2") diam. mast collar post
Applications:
  • Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 10M (33')
  • Various control line applications on larger yachts
  • Alloy sheave models are available for use with wire
Materials:
  • Sheave: U.V. stabilised Acetal
  • Cheek body: Aluminium Alloy
  • Ball Bearings: High compression strength carbon black Acetal
  • Shackle, head post & hub: Grade 316 stainless steel
