Ronstan

Ronstan Series 45 Core Block - Single/Swivel Haylard - P/N RF44188

(No reviews yet)

$92.88

SKU:: RF44188
UPC:: 9316800484669
Weight:: 0.40 LBS
Unit of Measure:: EA
Manufacturer Part Number (MPN):: RF44188

Ronstan Series 45 Core Block - Single/Swivel Haylard - P/N RF44188

$92.88

Description
Shipping & Returns

Description

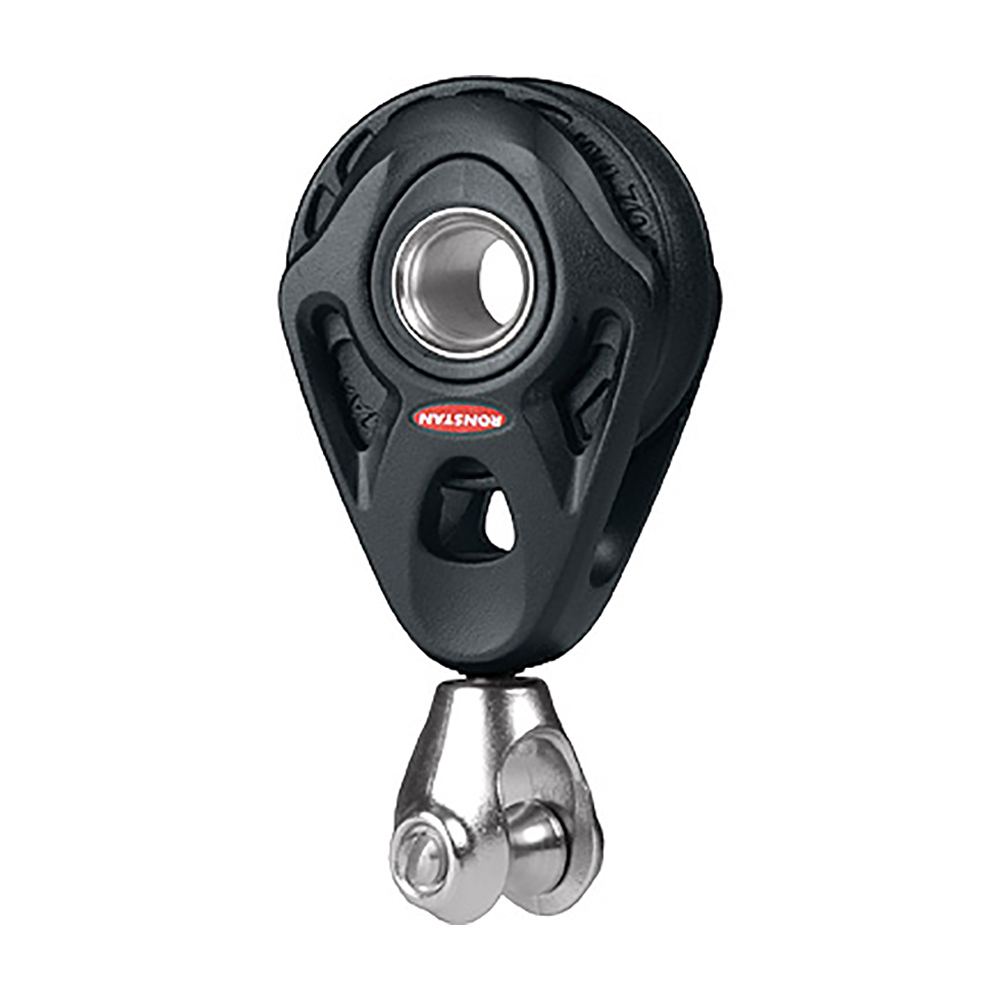

Series 45 Core Block - Single/Swivel Haylard

Core Blocks are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.

Universal Bearing

Dynamic and high static load performance
The Ronstan Universal Bearing incorporates our proven 2-stage bearing system
Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction
Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance
Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn’t perfect. Particularly important for cheek blocks

Alloy Cheek Plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimization and the cut-away design minimizes weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimizing rope wear.

Features:

High dynamic and static load capacity
Efficient 2-stage bearing system
Ball bearings to counteract side thrust loads
Class leading performance and sleek, contemporary styling
Durable aluminium alloy cheek plates
Central hub hole can be used as a becket take-off or tie-up point
Incorporates a low profile swivel head fork
Features a removable screw pin for attachment to padeyes
Suitable for 12mm (1/2") diam. mast collar post

Applications:

Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 10M (33')
Various control line applications on larger yachts
Alloy sheave models are available for use with wire

Materials:

Sheave: U.V. stabilised Acetal
Cheek body: Aluminium Alloy
Ball Bearings: High compression strength carbon black Acetal
Shackle, head post & hub: Grade 316 stainless steel
