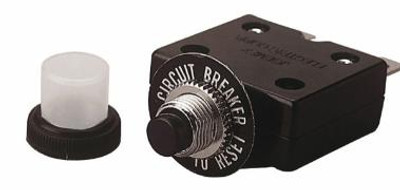

Thermal Circuit Breaker 10 Amp by Sea Dog Marine (420810-1)

(No reviews yet) Write a Review
0.08 LBS
Unit of Measure:
Manufacturer Part Number (MPN):

Thermal Circuit Breaker 10 Amp by Sea Dog Marine (420810-1)


Boaters need to give importance to safety measures while sailing. Electricity in a boat is crucial, especially when you are in contact with water. Never compromise one’s life, choose only the best quality. That is what Recmar is known for in the marine industry. Recmar is committed to manufacturing products that -pass thorough testing before it is well packed to be delivered.

THERMAL CIRCUIT BREAKER 10 AMP (3-420810-1) is a circuit protection device that consists of molded bakelite construction with easy connection, terminal style, and stamped brass connections. During an overcurrent, heat is generated when the current passes through the reed, forcing it to deflect and snap open.

THERMAL CIRCUIT BREAKER 10 AMP (3-420810-1) carefully isolates the contacts and interrupts the current flow. After tripping, it has a resettable advantage, as opposed to sacrificial fuses. It keeps both you and your watercraft away from any electrical damage, from possibly life and death situations.

Key Features:

  • Cost-Effective.
  • Shock and Vibration resistant.
  • Transport the load current without overheating.
  • Designed to survive even in a harsh marine environment.
  • Current overload prevention for engine motors and transformers.
  • Made from durable materials that last years of service.


  • Brand: Sea Dog Marine
  • VDC: 32
  • VAC : 125-250
  • Amps: 5-30
  • SKU: 3-420810-1
  • Weight: 0.08 LBS
  • Manufacturer Part Number (MPN): 420810
  • This product replaces: 420810, 420810-1, 3-420810

Stamped Brass/Molded Bakelite

Thermal AC/DC Circuit Breakers are designed to protect an electrical circuit from damage caused by excess current. Vibration and shock resistant these push-to-reset circuit breakers are an economical alternative to magnetic breakers. Unlike sacrificial fuses they have the advantage of being resettable after tripping. Panel mounted compact design. Constructed of molded Bakelite with quick connect, terminal style, stamped brass contacts. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 5-30A @ 125-250 VAC. 32 VDC.

This product replaces:

    420810, 420810-1, 3-420810
